Videffektor

This is a glitchy, lo-fi distortion effect for analog video signals. It was originally designed by James Schidlowsky via postings to Electro-Music.com; and was recently revived by Javier Plano (@Videonic) who designed and published a PCB design which you can freely download. I made some minor changes to that board and did a small run of PCBs for this workshop.

Connecting a video signal to the input and monitor to the out add various levels of distortion and artifacts, particularly to the edges of images. The effect is highly sensitive to both the video source and displays, and tends to have some "sweet spots" based on the control settings, with lots of noisey/staticky regions in between.

Example 1

Example 2



BOM

Here's the Bill of Materials – all the parts that should be in your kit:

Videffektor BOM
QTYPart Description
31kΩ ResistorBrown-black-black-brown-brown
12.2kΩ ResistorRed-red-black-brown-brown
1470Ω ResistorYellow-violet-black-black-brown
11N4001 Diodeblack epoxy, observe polarity band
11N4148 Diodeglass, observe polarity band
116pin DIL socketfor ic
1IC CD4040BE12-stage ripple carry binary counter
114pin DIL socketfor ic
1IC LM339quad comparator
21k Potentiometer code B102 - "Crudo", "Fino"
150k Potentiometer code B503 - "Grueso"
25k Potentiometer code B502 - "Divisiones"
1Power jack 3.1mm
2RCA jacksinput, output
1Red LEDobserve polarity; flat side/short leg = cathode



Build Steps

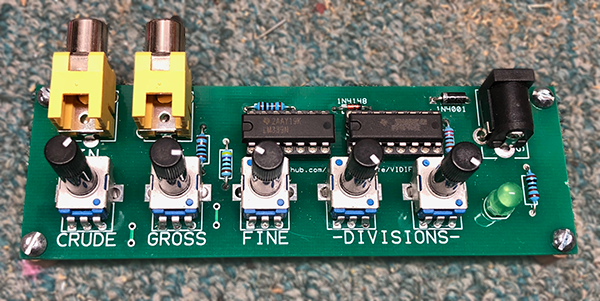

All of the parts of the Videffektor mount directly on the PCB, making assembly super easy – place components in the holes following the legend, turn the board over, solder, and clip the leads.

If you have not soldered before, this will be an easy intro... call me over and we'll have you squared away in no time.

Inserting the parts in the following order puts the lowest-profile components in first, which helps keep them in place when soldering:

  1. Start with the resistors – small blue cylindrical jobs with colored bands to show the values. Pinch the body of the resistor in one hand, and fold both legs down at the same time, not too tight to the body. Then follow the PCB legend and push the leads through the holes. Do them in this order:
    • 2.2kΩ there's just one of these, color code red-red-black-brown-brown
    • 470Ω – again just one, yellow-violet-black-black-brown
    • 1kΩ – the remaining 3 resistors, brown-black-black-brown-brown
    Turn the board over and lie it flat on the table so all the resistors are pushed flat against the PCB. Solder. Turn the board over to make sure everything stayed flat, and if all's good then snip the leads.
  2. Diodes – there are two: the tiny glass one is the 1n4148, and the larger black epoxy one is the 1n4001. These are both poloraized (need to go right way around) – make sure the striped end of the diode matches the black stripe marking on the PCB legend. Insert, flip over, solder, and clip the leads.
  3. IC sockets – there are 2, one with 14 legs and one with 16. There's a little divot on the ends, make sure they match the divot on the PCB legend. Turn over, solder one corner of each one, and then make sure they're laying flat; then solder the opposite corner and check again. It's a pain to unsolder a socket, so check twice, then go ahead and solder all the other pins.
  4. Power connector – This is the large black one towards the back. The holes are round but the component tabs are flat – you don't necessarily need to fill the entire hole, but make sure there's a solid mechanical connection since you plug/unplug the power over time.
  5. LED – or Light Emitting Diode, the shiny domed item. Like the other diodes, this is polarized... the slightly flattend side on the bottom of the plastic case should line up with the flattened side of the legend. These can go flush against the board, or a little (1/16") elevated.
  6. RCA jacks – Two yellow connectors, they should snap into their holes with a little click. Again, make sure the solder joints are mechanically sound, but no need to go overboard.
  7. Pots – (short for "potentiometer"), the controls go in last. There are 5 pots with 3 different values, check the markings on the bottom and be sure to get them in the right places (B102=1k; B502=5k; B503=50k). Like the RCA jacks, they should click into place. Go slow when soldering and flip the boards over to make sure everything's perpendicular as you go.

And that's it. Check your work, make sure there aren't any globs of solder or leads folded over and shorting something out.



How it works

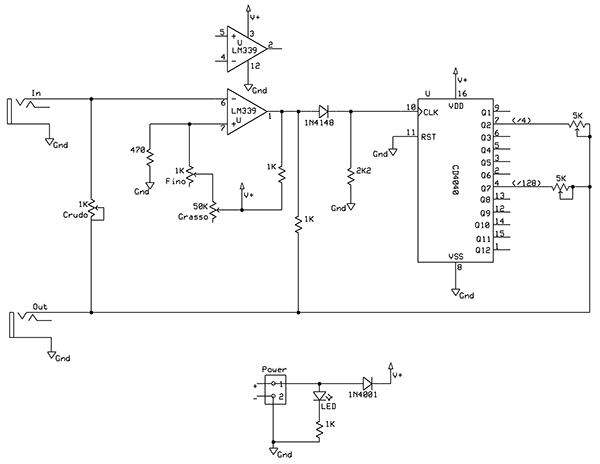

Here's a redrawn version of the Videffektor schematic:


(click for large version)

At a high level, here's what's going on:

  1. Signal comes in, upper left.
  2. It's routed to the LM339 Comparator, which compares the signal to a reference voltage – if it's higher than the reference, the output goes high; otherwise it stays low.
  3. The two pots labeled Grasso and Fino set the reference voltage for the comparator.
  4. The output of the Comparator goes to a Divider, which takes the series of pulses and divides them into binary numbers: every 2 cycles output Q1 goes high, every 4 cycles Q2, every 8 cycles Q3, and so on. It essentially divides the frequency coming from the comparator by multiple powers of two.
  5. The Q2 and Q7 outputs ( /4 and /128) go to two Division pots, which independently control how much of those 2 signals are sent back to the Output, lower left.
  6. The Wet/Dry pot mixes some amount of the original input signal back into the output. Turned all the way up, it sends the entire unaffected signal back out, effectively bypassing the effect.

When it's cranked up full, the effect basically destroys the Synch part of the analog video signal, and overwhelms the display's ability to decode it, resulting in hash. Different displays are better or worse at dealing with corrupted synch signals, which is why the results are so dependant on the video source and monitors you use.



Using the Videffektor

As we test your builds, we'll demo some more stuff on how to use the Videffektor: process pre-recorded video, live feeds, feedback...

Related Facebook groups:


Resistor color codes

Resistors have values in ohms (with k meaning kilo- or thousands-of-ohms; m meaning meg or millions), and they’re labeled with colored bands that tell you their value.  Here’s how it works:

Our resistors had a tolerance of ±1%, so they had 5 bands. So, "red-red-black-brown-brown" translates to 2 2 0 x10Ω (2,220Ω, or 2.2kΩ) at ±1% tolerence. You can always look it up on the interwebs, and there are aps. Being able to read color codes will be important if you start building stuff from scratch.
