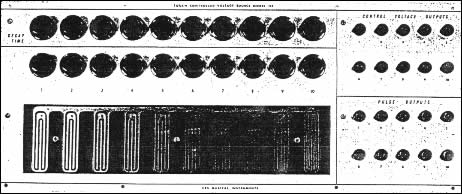

Model 114 Touch Controlled Voltage Source

Ten independent, touch activated keys, each with a corresponding control voltage output and pulse output. The voltage outputs are particularly useful for controlling gates (110) or mixers (107), and the pulse outputs for initiating attack waveforms (180) or other events.

DIY Resources

Schematics
- Early Hand drawn version, one channel only (from Pauline Oliveros's copy of 100 Series Manual)
- Redrawn (complete), (from LA 67 pages)
Builds
PCBs
