196 Phase Shifter

196 Phase Shifter

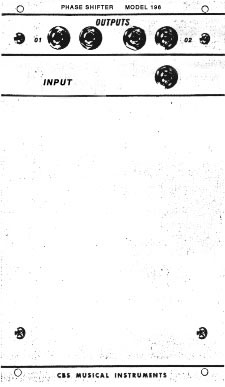

Shifts phase of input signal such that a 90 degrees (+/- 5 degrees) phase relationship between the two outputs is maintained from 5 cps to 20 kc. Used in conjunction with ring modulators for frequency shifting or for exotic visual displays.
