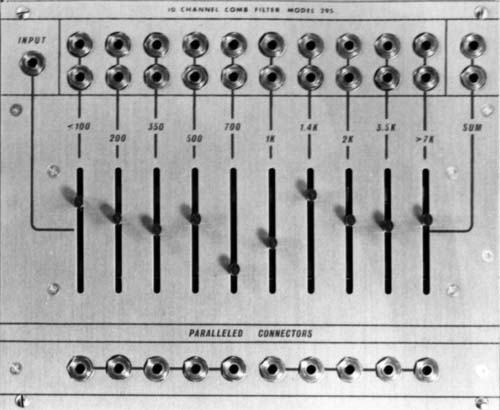

Model 295 Ten-channel Filter

Ten-channel comb filter with center frequencies selected to complement the discrimination curve of the human ear. Separate unattenuated outputs and a summed output, with adjustable spectral shape, are provided. This unit is particularly useful for graphic equalization and (in conjunction with a Model 205 Matrix Mixer, a 248 Function Generator, and a 292 Lopass Gate) for generating complex, time-varying timbral functions.
